Cody-Kite
Please, be patient, there are 226 kB to load...


This kite was purchased by Hans-Peter Böhme in 1996 at Sotheby`s Cody auction. The form of the wings was previously unknown to me. This is a good piece of kite even though nearly 90 years old.
It is exciting to think that CODY HIMSELF has handled this kite...
The spars are made entirely from bamboo. The sails were mostly in good condition considering the age, and were very tight. The design of the spar pockets is very specific.

Cody,from behind 13kB jpgCody, side view  11kB jpg

Fig. 1. Left: Cody, back elevation Fig 2. Right: Side elevation

Cody, left wing  14kB jpgCody, right wing  13kB jpg

Fig. 3. Left main wing, nibbled by the teeth of time ... Fig 4. Right main wing


This is not intended to be a plan from which to build a kite, but rather a design description.

Important: All measurements on the diagrams are excluding seams and describe the situation after sewing all parts together. You have to add 2 cm to the upper and lower edges of the side and central panels, which are drawn separately. If you want to build the kite, it would be best to perform a sanity-check on all measurements. The following drawings describe the completed kite.


Overview graphics:

Cody    15kB gif

Fig. 5. Upper surface

The white vertical parts on the wings are the places for the spar pockets. The bamboo spars in the main wings are slightly curved by air pressure (BÄNDER FÜR ABSPANNUNG = loops for supporting lines of the wing).


Lower surface   8kB gif

Fig. 6. Lower surface:

The lower panels are made of four small pieces to prevent stretching due to flapping panels.(VORNE = front, WAAGEPUNKTE = bridle points)

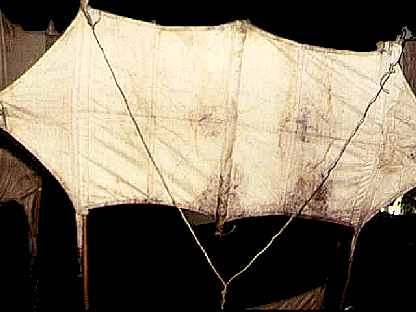

lower front panel 15 kB jpg

Fig. 7. lower front panel


Side panel   3kB gif

Fig. 8. Side panel

This is the left front side panel, referenced to fig. 5. The other side panels are mirror images. The reinforcing piece 7.5 × 14.0 behind the hole for the diagonal spars is located on the inside of the sail.

central panel  4kB gif

Fig. 9. Central panel

The measurements include the hem; this panel is sewn along the 0.5 cm seam to the upper and lower panels.


Front Cody   3kB gif

Fig. 10. Front elevation

The diagonal front spars are 260 cm long, the diagonal back spars are 200 cm long. The longerons are 190 cm long.
The supporting lines for the wings are drawn as dashed lines. Each line goes from the tips of the outer sail spars to the lower wing tip on that side.

The diagonal spars are fixed on the lower end with tape loops on the wing tips, on the top end the spars were fixed with hemp cord.
Unlike other Cody kites, the side panels are not parallel.
The semi-circular marks are the places for the longeron pockets. The pockets for the sail spars are sewn to the outside of the wings; the sleeve pockets for the longerons are sewn between upper- and side-panel. All sleeve pockets are made from 4 cm cotton tape.


Material:

The sail consist of very fine cotton and is very stiff (age ? impregnation ?). The edge binding tapes are also made from very tight cotton. The spars are bamboo and the rigging lines are made of hemp (2 mm).


General construction tips:

All parts of the sails are hemmed before sewing together. You therefore have to sew hem to hem and not sail to sail. On each side of the edge bindings you have to add 10cm to get additional loops for the spars.


Details:


wing tip and pocket  8kB gif

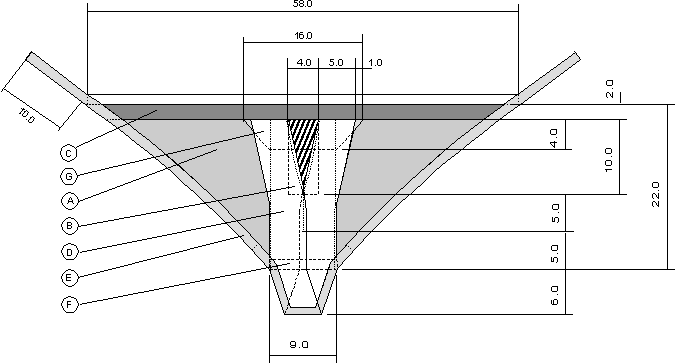

Fig. 11. Lower wing tip with pocket. The pocket here is drawn before sewing for clarity.

pocket  16kB jpg

Fig. 12. Hole for diagonal spar with pocket

Individual parts:

Preparation of the wing tips: Preparing the sleeve pockets: Sewing together:

half upper back wing   14 kB gif

Fig. 13. Half upper back wing

Individual parts (Wing spar and pocket):

pocket  19kB jpg

Fig. 14. Wing with Pocket


front upper sail  16kB gif

Fig. 15. Half of the front upper sail (the other half is a mirror image).

Individual parts (just the pockets):

The pockets for the sail spars are closed at the tip by the edge binding tape which runs round them, and they are sewn on the top side of the wing.

N.B.:
The sewn edges of the pockets change in width. From the right the width of the hole is 9cm, over the fold 10cm, over the first spar pocket 7cm, over the second spar pocket 6.5cm and the loop 9cm again. Because of this the spar lies closer to the sail spars.

pocket  12kB jpg

Fig. 16.: pocket, main wing


Longerons

Here I was at a bit of a loss. The principle is simple: all the spars consist of two pieces notched to about 5cm in depth at their ends, bound together with hemp string and placed in loops. Tension is created in the panels by adjusting the different sized struts against each other. The front and rear panels are 62cm apart.

Longerons   2kB gif

Fig. 17. Longerons

B: Lower longerons (bamboo):

Diameter about 10mm, i.e. smaller than the lower longerons. The main spar about 137cm, adjacent spar about 100cm overlapping and tying area about 23.5cm and overall length of 190cm. The longerons consist of a combination of longer and shorter struts in which on one side, the longer end is at the front and on the other side at the rear (to spread the weight evenly? for stability?)

It is noticeable that the whole of the underside of the kite (sail and struts) is much more rigid than the upper side.

bamboo tip  10kB jpg

Fig. 17. wing tip of the longerons


Spars:


sail spars  10kB jpg

Fig. 18: Mounting of sail spars

You need eight sail spars, six for the front wing and two in the centre of the back wing. All sail spars are cut from bamboo, 2cm wide and 0.5 cm high. On one side, all the spars are given a 5mm semicircular notch where the line is fixed. The line (2mm hemp) is sewn through the pocket ends using a thick needle. All the pockets for the spars are sewn up on the outer edge as you look from the middle of the kite. The pockets themselves are made from a 4cm-wide cotton band and are always on the outer edge of the wing (see Fig.10).

Spars for central panel front and back: 4 × 66 cm
Spars for main wing: 4 × 98 cm


Diagonal spars:

All that follows now is pure speculation. The diagonal spars were not included (maybe lost fifty years ago). The diagonal front spars have to be at least 260 cm long, better 10 cm more. The diagonal back spars have to be at least 2000 cm long and here again better 10 cm more. A circumference of 2cm for the bamboo spars seemed quite enough for the tension. Each end (as for the longerons) is notched and bound. The spars are hung underneath in loops and on the top stretched with a line. Whether or not the two spars were bound together in the middle, I can only guess.


Supporting lines:

The outer sail spar of the main wing (see Fig. 5: points A und B) is tied on both sides to the tip of the lower small wing (see Fig. 6: point C) with two 120cm long anchor lines. The anchor lines consist of 2mm strong hemp line. At points A and B on the wing, 6cm long bands are sewn as loops. At point C the anchor lines are passed through the spar pocket with a thick needle. See Fig. 10.
Between the front and rear panels these are stretched along the struts. Beside this are 10cm long bands, some sewn on, some made up from overlapping edge bindings. The gap between the front and rear panels is 62cm overall.


Bridle:

The bridle line is again made from 2mm hemp line. The disposition of the bridle lines is unusual even for a Cody kite; one bridle line joins both front end points of the lower longeron and another joins the front points of the rear panel to the same spot. At least the bridle points are the same as in the well-known Cody War Kite (see also Fig. 6). Cody then knotted the two lines together with a simple loop so that all the bridle legs ran together to one point.
The front bridle legs are each 84cm long, the rear legs must have been between 137.5cm and 142cm. It is no longer possible to say exactly; both rear legs are torn, and through stretching are both of different lengths. As in all Cody models which closely resemble the original, the bridle legs are unusually short for the size of the kite.


More information about S.F. Cody and his kites:

Books:

Magazines (german): Internet:
English translation : Philip Le Riche & friends

©1997 Thomas-Michael Rudolph
